Wing load test

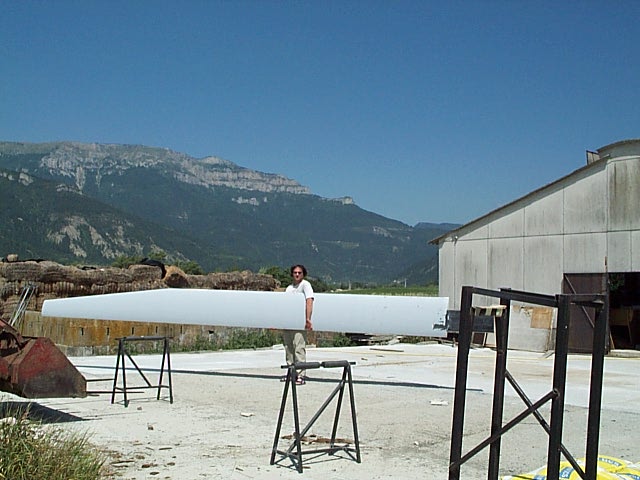

A 7,5 m wing, weighting 34 kg (for more detail see building review page) ...

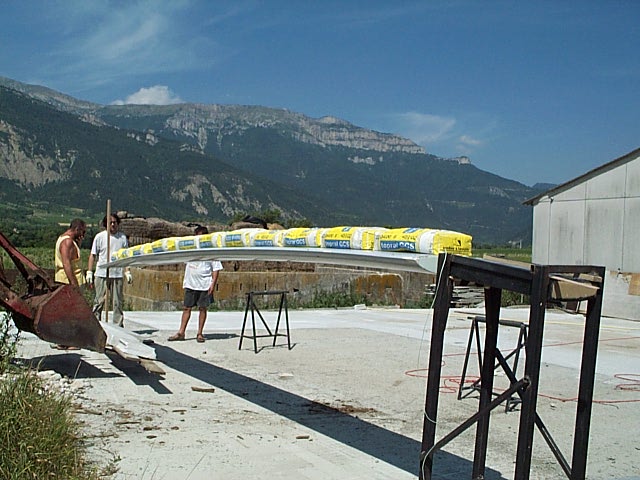

... and sustaining a 360 kg load !

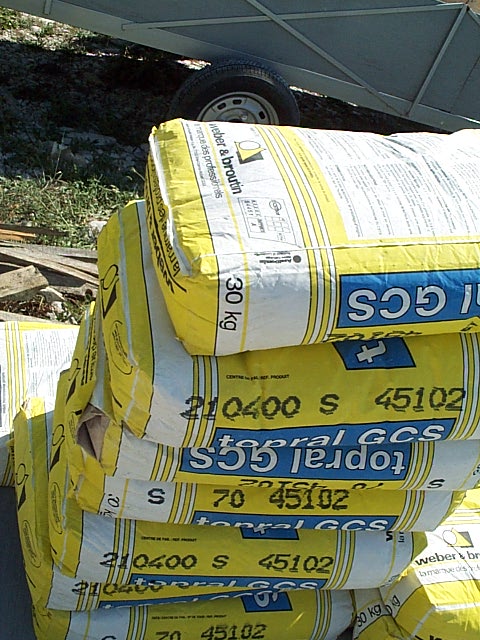

On this picture one can count eleven bags of 30 kg, plus the proper wing mass.
This sum to a load factor of 4 g, based on dead weight (fuselage) of 180 kg averaging on two wings.
Bending is then 80 cm at wing tip.

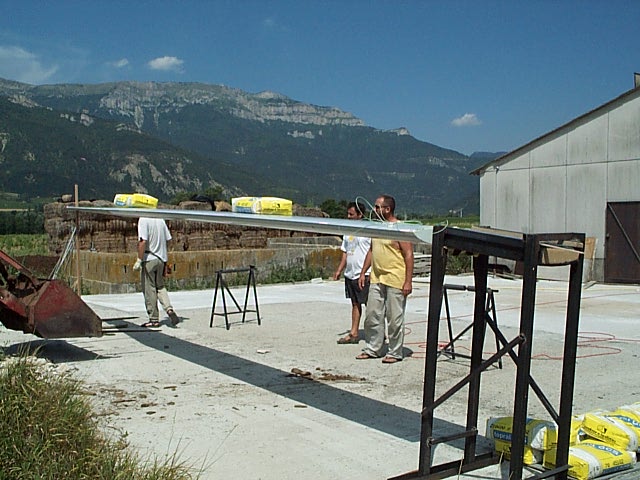

Here the wing under normal working load; 1 g (2 bags + wing mass = 94 kg).

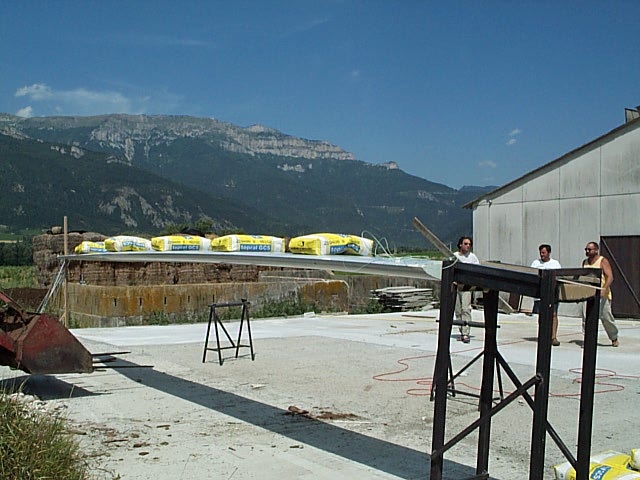

And at 2 g, loading factor of à tight spiral, bending is 40 cm.


Note : to comply with french regulation, test have been pushed until wing break at more than 6 g.
